Geberit Sigma Tile-In Flush Plate STL

Compatibility:
This STL file is designed exclusively for Geberit Sigma concealed cistern systems.

Please make sure your installation uses a Geberit Sigma cistern before purchasing, as this model is not compatible with Geberit Delta, Alpha, Omega, or other flush systems.

Digital STL file designed for creating a custom tile-compatible flush plate for Geberit Sigma systems.

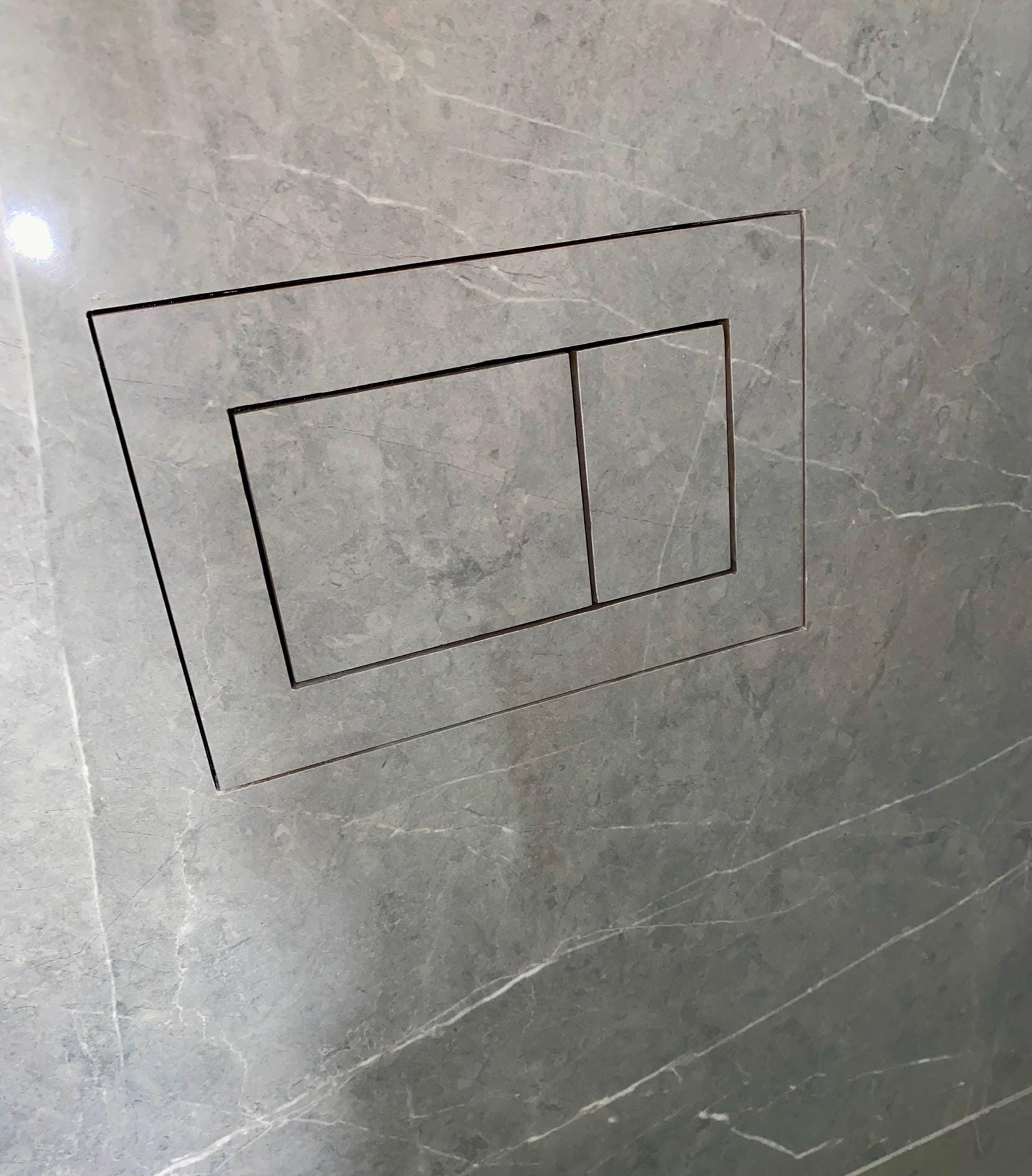

This model allows tiles to be mounted directly onto the flush plate for a clean, seamless, and modern bathroom appearance.

Perfect for custom bathrooms, hidden installations, and premium interior projects.

✔ Digital STL download
✔ Designed for Geberit Sigma systems
✔ Print-ready model with integrated supports
✔ Easy assembly
✔ Precision-fit components
✔ Fully customizable tile-compatible design

Features:
• Integrated breakaway clips for easier printing
• Print-ready construction
• Designed for clean tile integration
• Professional flush installation appearance
• Strong and durable design optimized for PETG printing

Requirements:
• 3D printer with minimum build area of 240 × 160 mm
• PETG filament recommended
• Basic assembly hardware

Printing Instructions

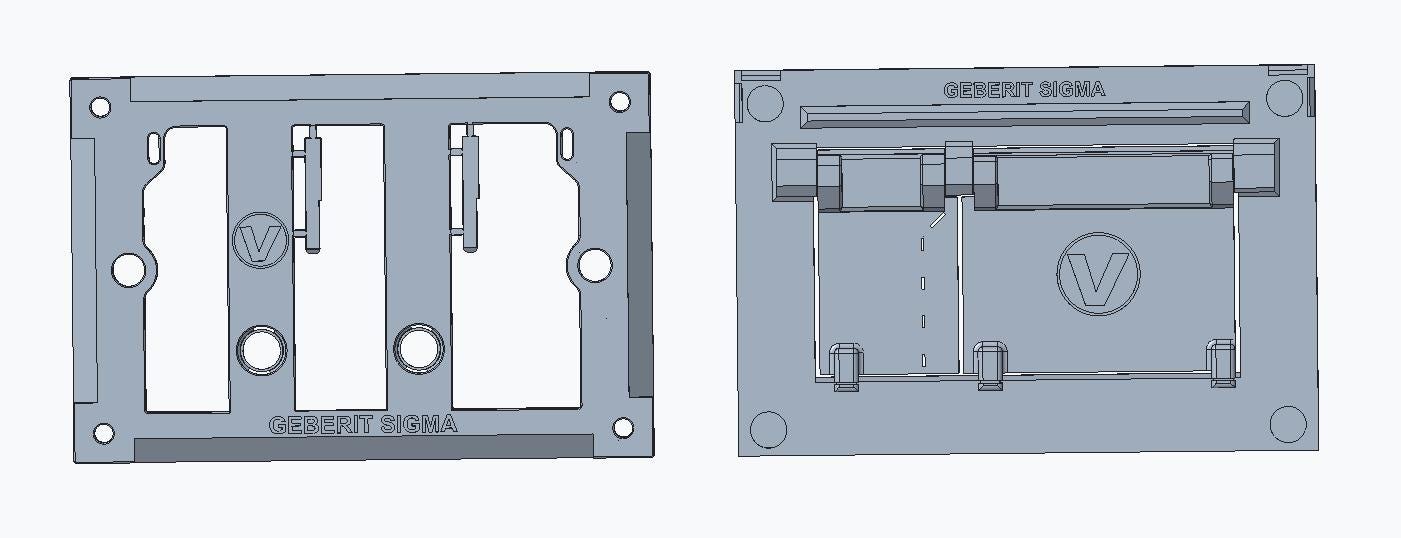

1. Inner Housing (Base Frame)
• Pause the print at layer 60 to insert nuts
• Recommended hardware:
– 4× M6 nylon lock nuts
– 4× M6 flat head screws
• Screw length depends on wall thickness
• 30 mm screws were used in the reference setup

Required magnets:
• 4× Neodymium disc magnets
• Size: Ø15 × 3 mm
• Strength: approx. 3.7 kg holding force
• Type: N52 nickel-plated

2. Flush Button
Recommended print settings:
• 5 bottom layers
• 5 top layers
• 4 wall loops

Optional:
• Bottom layers can be disabled to improve silicone adhesion

Material recommendation:
• PETG for strength and flexibility

After purchase, you will receive a high-quality STL file ready for 3D printing.

Important:
This is a digital STL file only.
No physical product will be shipped.

Note:
Tiles, hardware, magnets, and Geberit components are not included.

For questions or custom requests, feel free to contact us.
